HDMI extender over Cat5e/6 with IR control 1080P 3D EDID equipments for 50m

FOB Reference Price:Get Latest Price
US $26-28 / Pieces | 30 Piece/Pieces (Min. Order)
Customization:
Customized logo (Min. Order: 150 Pieces)
Report Suspicious Activity
Overview
Quick Details
Brand Name:
YomBand
Model Number:
SK-HED50LWS
Place of Origin:
Guangdong, China (Mainland)
Video Bandwidth:
Single-link 165Mhz (4.95Gbps)
Input TMDS Signal:
3.3 volts
Input DDC Signal:
5.0 volts/P-P
Support video format:
8/10/12bit Deep color
HDMI connector:
Type A 19 pin female
RJ-45 connector:
WE/SS 8P8C
Power Supply:
5V1A DC
Power consumption:
1.5 watts (TX); 1.0 watts (RX)
Operation temperature:
32~104 °F
Housing:
Metal enclosure
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month hdmi extender
Packaging & Delivery
Packaging Details
Packing list:
1. HDMI Transmitter x1pc
2. HDMI Receiver x1pc
3. Windband IR Tx cable x1pc
4. Windband IR Rx cable x1pc
5. 5V1A DC Power Supply Adaptor x1pc
6. Product Manual x1pc
Packaging material: carton box(1 pc)
Port
Shenzhen,Hongkong

Wholesale HDMI 50m extender over Cat5e/6 cable with IR control 1080P 3D EDID management



Mode:SK-HED50LWS

Product type: HDMI extender 50m,EDID HDMI extender,IR HDMI extender

Product Description



SK-HED50LWS  Product Introduction:



 The HDMI Extender over Single Cat5e/6 with IR extends high definition video and audio signals and IR, at a distance of up to 164ft/50m over a single Cat5e/6 cable. Features EDID management, which allows and encourages source and display “handshake” for seamless integration. With only one cost effective Cat5e/6 cable, high definition sources with HDMI outputs can be connected to high definition displays with HDMI inputs over long distances. Deep color video, DTS-HD or Dolby TrueHD audio  is  supported and compatible with the extender. In addition, the extender is also equipped with pass-through which allows for source control.



The extender includes two units: transmitting unit and receiving unit. The transmitting unit is used to capture the HDMI input with IR signals and carries the signals via one cost effective Cat5e/6 cable. The receiving unit is responsible for equalizing the transmitted HDMI signal and reconstructing IR control signals. The extender ffers the most convenient solution for HDMI extension over a single Cat5e/6 with long distance capability, and is the perfect solution for any application





SK-HED50LWS  Features:



  • Allows HDMI Audio/Video and IR signals to be transmitted
    over a single Cat5e/6 cable.
  • Support copy EDID from receiver display or loop out
    display.
  • Allows for cascading via additional HDMI loop out port.
  • Support Power over cable function.
  • Transmission Range: Extends 1080p resolution up to
    164ft/50m over a single Cat5e or Cat6 cable.
  • Works with HDMI and HDCP compliant devices.
  • Supports up to 1080p High Definition resolution.
  • Compact design for an easy and flexible installation.



SK-HED50LWS Technical Parameters:





Video Bandwidth

Single-link 165Mhz (4.95Gbps)

Video Support

480i/480p/720p/1080i/1080p @60

Audio Support

Surround Sound (up to 7.1 ch) or stereo digital audio

Transmission Range

HD (1080p 24-bit color)– up to
50m (164ft)

Input TMDS Signal

3.3 volts

Input DDC Signal

5.0 volts/P-P

ESD Protection

Human Body model:+/- 8 kV
(air-gap discharge)
+/- 4 kV (contact discharge)

HDMI Connector

Type A 19 pin female

RJ-45 Connector

WE/SS 8P8C

3.5mm Connector

(TX and RX) IR Receiver/IR Blaster
MECHANICAL SPECS

Power Supply

(1) 5V1A DC

Power consumption

1.5 watts (TX),1.0 watts (RX)

Operation temperature

32~104 °F

Relative humidity

20~90 % RH (no condensation)





SK-HED50LWS  Pictures Details:











SK-HED50LWS Product Interface Pictures:

 1HDMI in: This slot is where you connect the HDMI output port of your source equipment such as DVD/Blu-ray players or Set-Top-Box with an HDMI cable

2. EDID: The switcher can switch copy EDID function,switch to right position,the extender will copy hdmi loop out display EDID information to source. Switch to left position,the extender will copy Receiver display EDID to source.

3. HDMI out: This slot is to connect the HDMI input of your display such as an HDTV.

4. IR out: Connect the IR Blaster cable included in the package for IR signal transmission. Pace the IR blaster in direct line-of-sight of the equipment to be controlled.

5. Power LED: This LED will illuminate when the device is connected with power supply.

6CAT: Connect the CAT output of the transmitter with the CAT input of the receiver with CAT5E/6 cable.

7. Link LED: This LED will illuminate when the device is connected to HDMI source.

8DC 5V: Connect from 5V DC power supply into the unit and connect the adaptor to an AC outlet.









1. EQ switcher: HDMI  Receiver  equalizer switcher.

2. HDMI out: This slot is to connect the HDMI input port of your display such as an HDTV.

3. IR in: Connect to the IR Receiver for IR signal reception. Ensure that remote being used is within the direct line-of-sight of the IR receiver.

4. Power LED: This LED will illuminate when the device is connected with power supply.

5. CAT: Connect the CAT input of the receiver with the CAT output of the transmitter with CAT5E/6 cable.

6. Lock LED: This LED will illuminate when the HDMI signal from the transmitter is stable.

7. 7.DC 5V: Connect from 5V DC power supply into the unit and connect the adaptor to an AC outlet.(For POC function, the receiver does not need power supply)







SK-HED50LWS  Wideband IR(30KHz---60KHz) introduction:



IR BLASTER (TX)
To control the source: Plug IR Blaster into IR TX port of transmitter unit; place blaster in front of the IR eye of the source.

IR RECEIVER (RX)

To control the source: Plug IR Receiver into IR RX port of receiver unit; place receiver at or near display.





Packaging & Shipping
SK-HED50LWS Packaging Accessories:

1. HDMI Transmitter x1pc
2. HDMI Receiver x1pc
3. Windband IR Tx cable x1pc
4. Windband IR Rx cable x1pc
5. 5V1A DC Power Supply Adaptor x1pc

6. Product Manual x1pc

Packaging material:  carton box(1 pc)







SK-HED50LWS Shipping:



Shipping portShenzhen,Hongkong
Delivery time7 Days after payment
ExpressFedex,DHL,TNT,UPS,EMS...



Company Information

 About us:


Shenzhen Yomband Co., Ltd. is a high-tech private enterprise of semiconductor designer and representative,aiming at developing and selling all kindsof electronic products.
We do believe new innovation technology is key point to assist our customers to increase their sales and business scope.
Yomband is qualified for General Taxpayer of VAT, and has established business with many large companies and factories locally, country-wide and all worldwide.
Yomband is now the main representative agent of the IC brands from Europe, America, Japan, Taiwan and mainland China, operating more than 20 product lines.
Meanwhile, we are also focus on the new finished product development and OEM and ODM for customers all over the world, already have Household appliances, air purifier, electronic toothbrush, automatic lawn mower, robotic pool cleaner and etc. we could fulfill all over world customer’s requirement.
To provide the best items with nice quality and best service is our long-term goal,warmly welcome to contact us you would know that we are the best in your sourcing, make your sourcing much more Easier and Competitive.

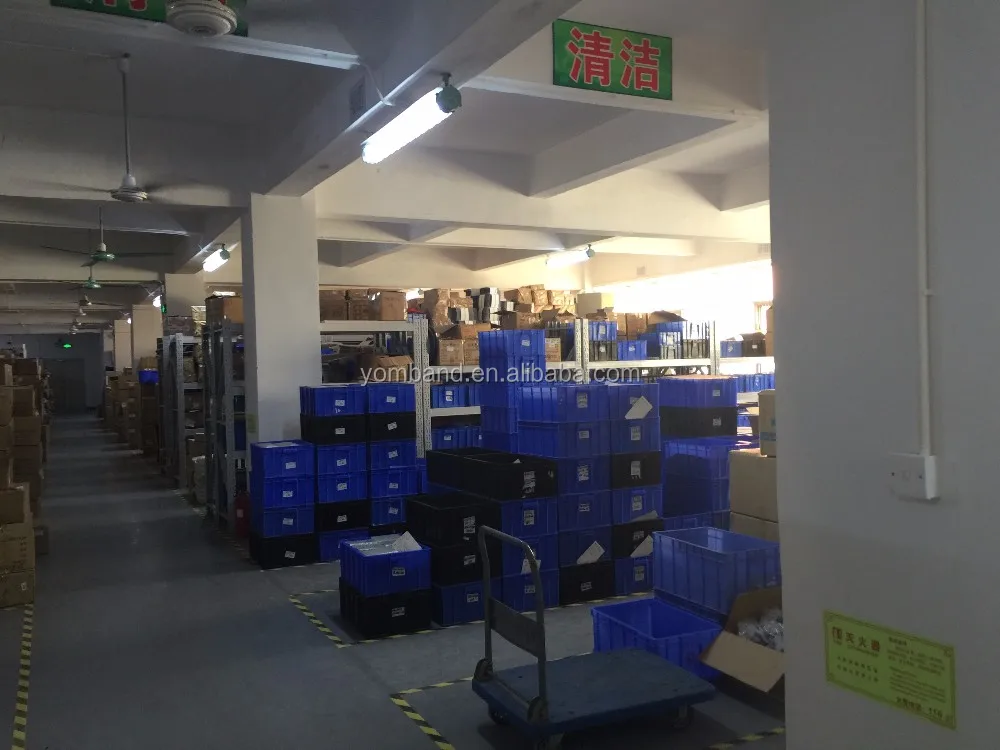

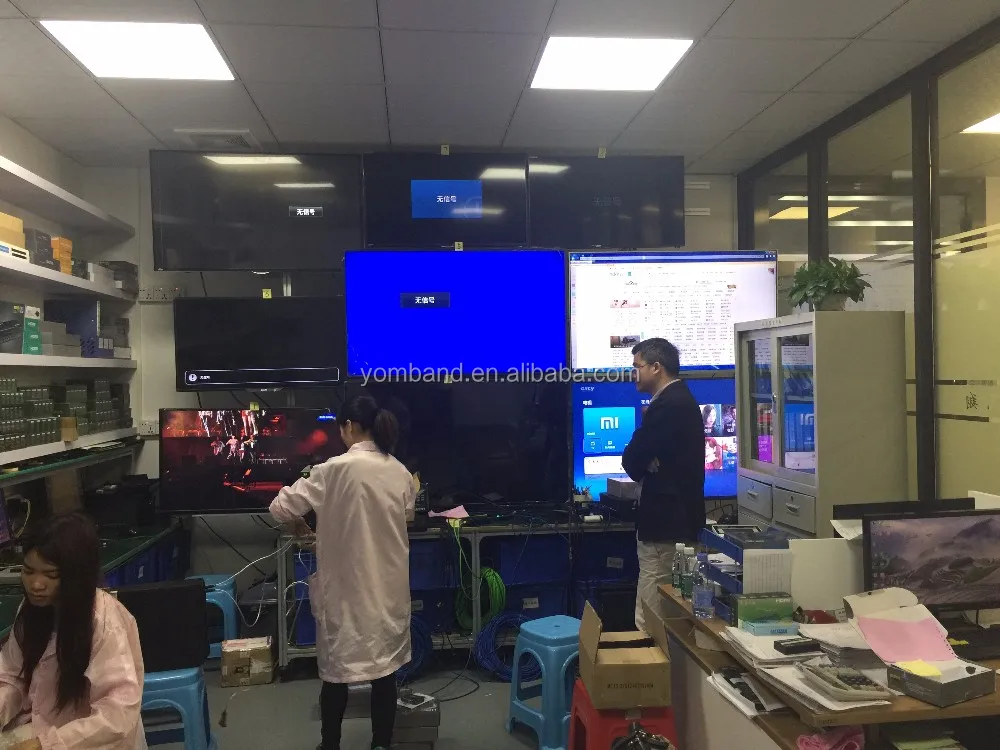

Factory Environment:
